Load balancer

A solution for distributing network or application traffic through a cluster of servers, which increases application availability and optimizes the load on virtual machines.

Load balancer VMware NSX Edge

VMware NSX Edge load balancer is a solution that provides routing, Firewall, NAT, DHCP, Site to Site VPN, SSL VPN-Plus, Load Balancing, High Availability, syslog for the virtual data center. Physically implemented as a virtual machine, connected to the networks of a virtual data center and to external networks (Internet).





Service
Load balancer
Cost
from 24$ per month

Why Load Balancing is Important?

The load balancer resides between the client and the server farm, which accepts incoming network and application traffic and distributes the traffic to multiple servers using different methods. By balancing application requests, it reduces the load on a server and prevents a particular application server from being a single point of failure, thereby improving overall application availability and responsiveness.

Traffic volumes are increasing and applications are becoming more and more complex. Load balancers provide the foundation for flexible networks that meet growing demands, improving performance and security for many types of traffic and services, including applications.

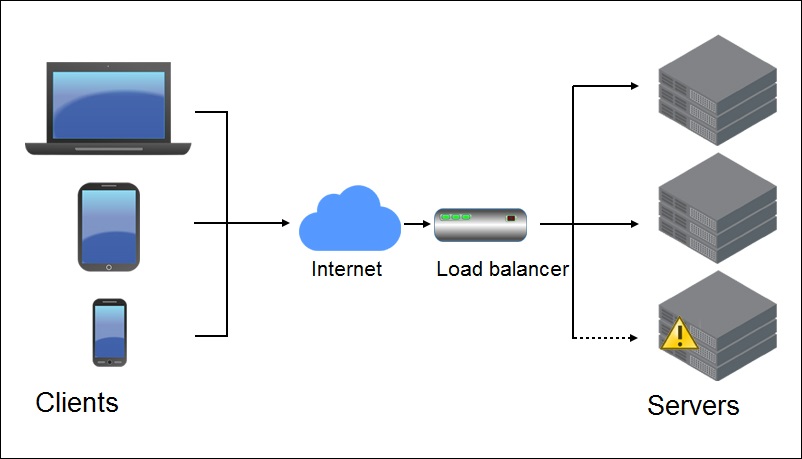

load balancer scheme

Benefits & Features

  • Protocols: TCP, UDP, HTTP, HTTPS
  • Algorithms: Weighted round robin, IP; hash, URI, least connection
  • SSL certificate management
  • X-header forwarding for client identification
  • L4/L7 transparent mode
  • Enhanced health check monitor
  • Resilience/sticky methods: SourceIP, MSRDP, COOKIE, SSLSESSIDID
  • One-Hand Mode
  • URL rewrite and redirection
  • Application Rules for Advanced Traffic Management
  • IPv6 support
  • Improved CLI load balancer for troubleshooting
  • Enable/Disable individual server (pool members) for service


Features & Performance

Virtual machines EDGE:

Edge (Compact)

Edge (Large)

Edge (Quad-Large)

Edge (X–Large)

vCPU

1

2

4

6

Memory

512 MB

1 GB

2 GB

8 GB

Disk Space

1 disk 584 MB+1 disk 512 MB

1 disk 584 MB +1 disk 512 MB

1 disk 584 MB + 2 disks 512 MB

1 disk 584 MB + 1 disk 2 GB + 1 disk 512 MB


Configuration limits tested:

Limit Edge

Number of interfaces

10

Number of firewall rules

2,000

Number of NAT rules

2,000

Number of DHCP pools

25

Number of static routes

2048

Number of load balancer pools

64

Number of load balancer virtual servers

64

Number of members per load balancer pool

32

Concurrent IPSec VPN Tunnels

512(compact), 1600(Large), 4096(Quad-Large), 6000(X–Large)

Concurrent SSL VPN Tunnels

50(compact), 100(Large), 100(Quad-Large), 1000(X–Large)


Firewall performance comparison:

Edge (Compact)

Edge (Large)

Firewall Performance (Gbps)

3

9.7

Concurrent Sessions

64,000

1,000,000

New sessions/second

8,000

50,000


VMware recommends using Edge type Large for balancing:

Edge (Large)

Edge (Quad-Large)

Edge(X–Large)

Load balancer throughput — L7 Proxy Mode (Gbps)

2.2

2.2

3

Load balancer connections / sec — L7 Proxy Mode

46,000

50,000

50,000

Load balancer concurrent connections — L7 Proxy Mode

8,000

60,000

60,000

Performance measurement was done in firewall accept mode.
For instructions on how to configure Load Balancer in VMware Cloud Director see our Knowledge Base.


Why trust Cloud4Y
14 years in cloud computing
Since 2009 the company successfully operates on the international cloud market.
Reliable infrastructure
4 TIER III data centers, Enterprise level hardware and software: HP, Cisco, Juniper, NetApp, VMware, Veeam, Microsoft, etc.
SLA 99.982%
Optical ring, MetroCluster and redundancy mechanisms guarantee fault tolerance of services up to SLA 99.99%.
Transparent Billing Options
Hourly billing and pay-as-you-go allow you to pay only for the resources consumed.
Geo-Distributed Backup
Automatic backup (14 restore points) in a separate remote data center.
Flexible scalability
You can add and reduce the amount of resources without need to contact technical support service.
24/7 technical support
If any technical issue occur, our team of support experts is available round-the-clock, response time is 10 minutes.
Partner Program
Earn up to 35% of your annual contract. White Label is available.


Price Configurator

Price

Load Balancer Edge (Compact) is free of charge.
More productive virtual machines with a load balancer — starts from 3280 /month

Price for VM EDGE:

Edge (Compact)

Edge (Large)

Edge (Quad-Large)

Edge (X–Large)

vCPU

1

2

4

6

Memory

512 MB

1 GB

1 GB

8 GB

Disk

512 MB

512 MB

512 MB

4.5 GB

Price, (excl. VAT)
 Free
 		$55
 $105
 $156
If you have any questions, you can contact our managers by phone +44 20 80 89 80 01 or any other convenient way available in the contacts

FAQ

Frequently asked questions (FAQ)

1. What is a load balancer for?
The load balancer is used to distribute applications' traffic in the servers group so that the new task arrives at the certain server according to the type of balancing.

2. What types of balancing are possible?
There are 4 types of balancing:
  • IP Hash: all requests from the certain IP-address will be forwarded to the predetermined server from the pool.
  • Round Robin: all requests are distributed among the servers in turn depending on the specified weight.
  • URI: all requests to the same address will be forwarded to 1 virtual machine. Applicable only for servers accessible via the protocol http.
  • Least Connected: new request will be sent to the least loaded server.

3. What's your load balancer like?
Cloud4Y uses VMware NSX Edge (load balancer) to provide the virtual data-center with routing, Firewall, NAT, DHCP, Site-to-Site VPN, SSL VPN-Plus, Load Balancing, High Availability, syslog. Implemented as a virtual machine connected to the virtual data-center and external networks (the Internet).

4. Under what conditions is the load balancer available?
The load balancer is available to all Cloud4Y users free of charge in the EdgeGateway Compact tariff, and it is important that you have at least 2 virtual machines.

Attention! VMware recommends using the NSX EdgeGateway at Large level and above for load balancing due to the fact that EDGE Compact may not have enough RAM to store connection history under heavy loads. The EdgeGateway form factor can always be changed to a smaller or larger form factor with no configuration loss and minimal downtime (3-5 minutes). I.e. it is possible to take Compact for testing, and when it becomes insufficient - increase it to Large, then you can return it back to Compact or increase to more powerful Quad-Large or X-large.

Comparison of EdgeGateway form factors are in our knowledge base.

7. If I can't set up the balancer, can you help me?
In this case our engineers can do this, but you need to pay for this service. 1 hour of the engineer's work priced for 1800 publes.

Find more answers to your questions  in our knowledge base. If you do not find an answer ask our manager using online-chat or send an inquiry using the support ticket system.
